The ERWEKA EasyCheck streamlines the tablet hardness testing process with a compact, fully automated solution designed for efficient routine testing.
As an entry-level combination tester, it measures up to five parameters in a single workflow, helping laboratories save time, reduce manual errors, and increase throughput. The EasyCheck automatically weighs samples using its integrated weighing cell, eliminating manual handling. Its patented Oblong Slider® aligns tablets precisely, ensuring consistent and reliable results for different tablet shapes. An intuitive touchscreen interface allows users to quickly configure and store up to 100 products, methods and users, simplifying daily operation. With its strong focus on automation, precision, and ease of use, the EasyCheck provides a reliable and efficient entry into fully automated tablet hardness testing, helping you streamline quality control while maintaining the highest standards.
Integrated Weight Measurement

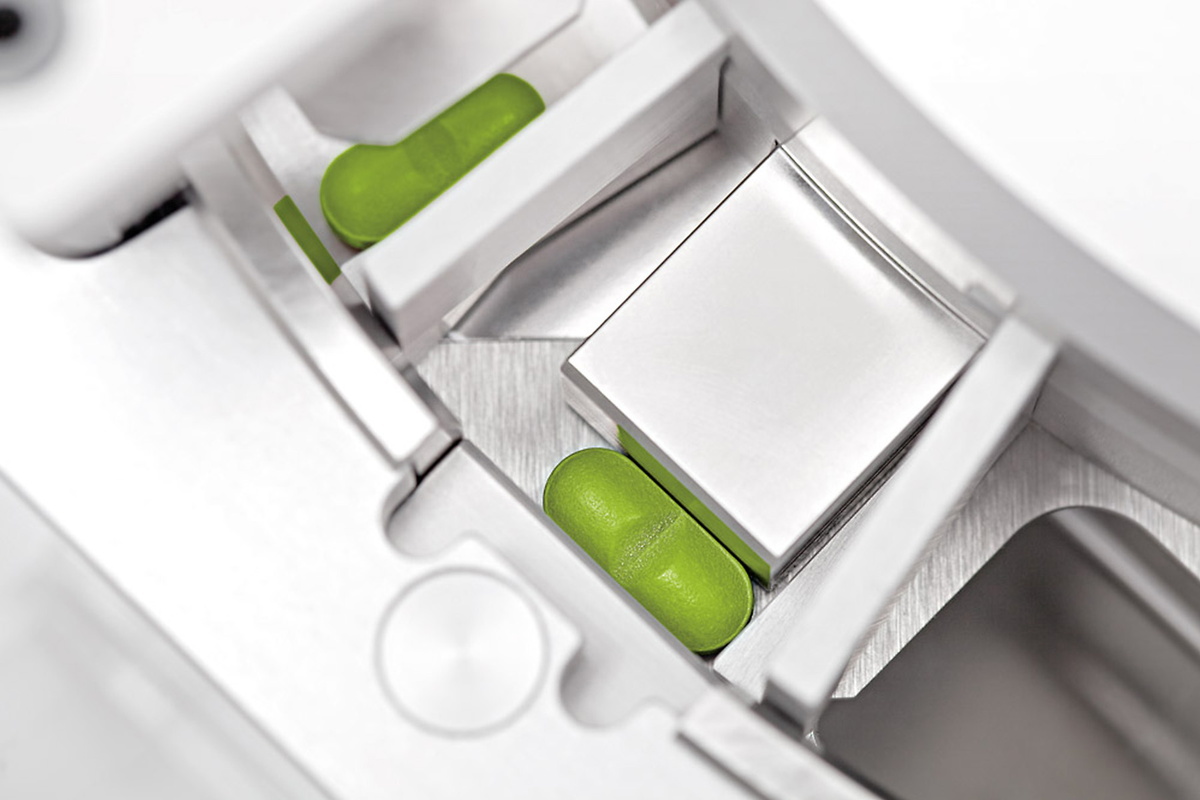

滑块技术完美地对齐形状均匀的长方形，便于确定宽度、长度和片剂硬度。
EasyCheck can additionally be equipped with a test memory for up to 1 million test results, an audit trail light function for paperless reporting and a data export function for CSV and XML export.

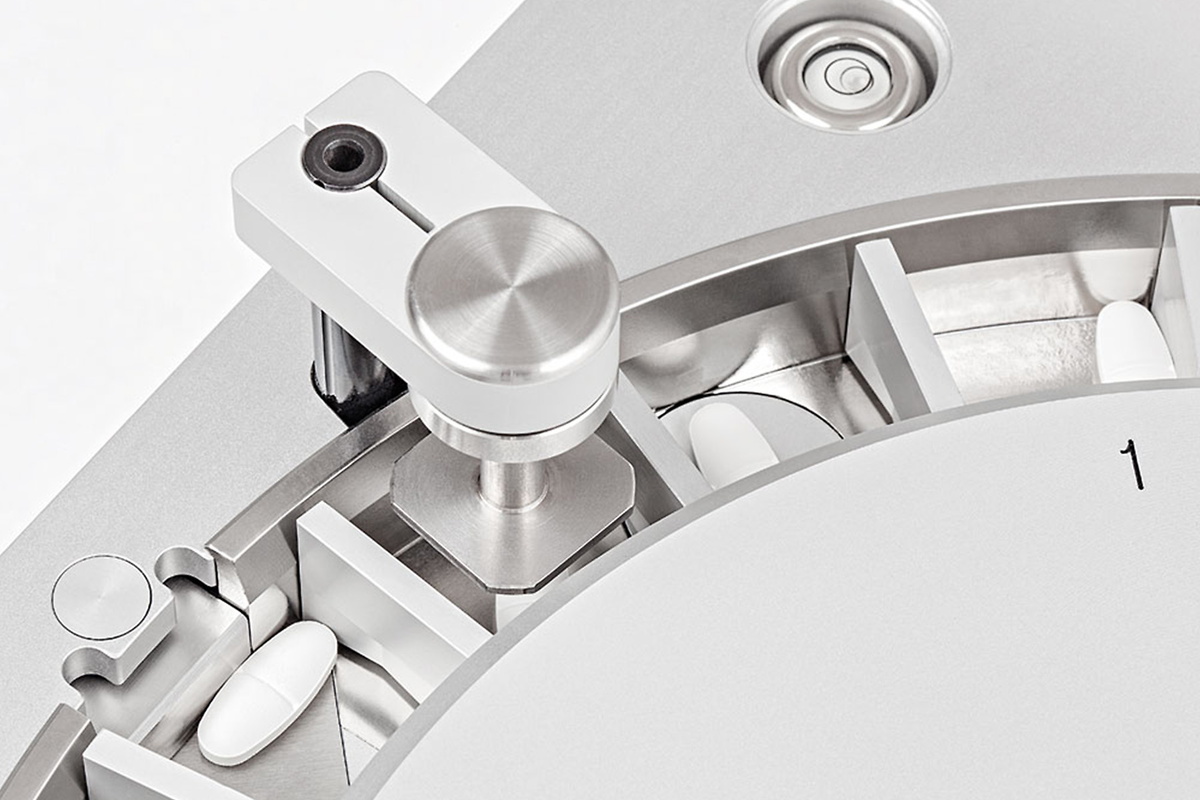

整齐的星形旋转料仓由不锈钢和铝制成，可为样品提供 20 个测试位置，并可随时对测试过程进行全面的目视检查。
广泛的功能集
When developing the EasyCheck touchscreen interface, we focused on what matters most to users: simple setup, quick test execution, and clear documentation of results. The intuitive color display allows users to operate and control even complex functions with ease, ensuring a smooth and efficient workflow. Measurements can be started, monitored, and reviewed in just a few steps. For added convenience, the system supports external USB keyboards, making data entry, such as creating new products, faster and more comfortable directly on the device.
Storage of Test Results
The system stores up to 100 products or testing methods as standard and offers a large data memory with capacity for up to 1 million test results. This allows users to quickly access and review historical data whenever needed, supporting full traceability and efficient data handling. In addition, the EasyCheck features integrated calibration functions and ensures consistently precise measurements. Combined with comprehensive documentation of all processes, it delivers a high level of user convenience while maintaining reliable and robust functionality.
ERWEKA AutoCal 2.0 系统是一种校准工具，用于自动校准硬度测试站，无需砝码、外部 PC 和软件。
校准从未如此简单。将 AutoCal 2.0 U 盘插入 TBH x25 的 USB 接口，并将连接的认证载荷传感器插入硬度测试站。
现在通过键盘和硬度计的显示屏执行整个系统（调整和校准）。该装置将自动进行调整，并且可以通过检查测量范围内的最多三个点来控制线性度校准。此外，还可以通过标准打印机接口生成跟单报告。
| 测量范围：硬度 | 3 - 500 N (±1 N) (optional 3 - 1000 N) |
| Measurement range: Diameter / Length & Width | 0.5 - 30 mm (± 0.05 mm) |
| 测量范围：厚度 | Linear potentiometer 0.5 - 10 mm (± 0.05 mm) |
| 测量范围：重量 | 3.0 mg - 89 g (± 0.1 mg) |
| 测量原理：匀速 | 0.05 - 3.00 mm / sec 0.1 - 3.0 mm / sec (Default: 2.3 mm / sec) |
| 测量原理：恒定力 | 10 - 100 N / 秒 |
| 控制器 | 7 英寸触摸屏，支持 USB 键盘 |
| 界面 | 用于打印机的 USB A、用于 PC 的 USB B、LAN（以太网 - RJ45）、SD 卡插槽 |
| 电压 | 100 - 240 伏 / 50-60 赫兹 / 150 瓦 |
| 温度熔断器 | 2 * 3.15 A |
| 防护等级 | I |
| 保护类型 | IP 21 |
| 重量 | 30 kg |
| 设备尺寸（宽x高x深） | 360 mm (422 mm with collection container) 321 mm (or 646 mm with open acrylic cover) 467 mm |
